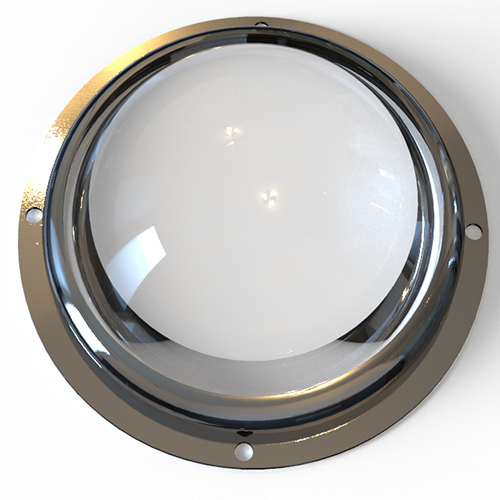

The perfect secondary light distribution glass lens can not only filter out most glare, but also let the whole light's luminous efficiency higher than 91.8%, Material Borosilicate glass 3.3 is simply a different type of glass that is resistant to temperat
Features The perfect secondary light distribution glass lens can not only filter out most glare, but also let the whole light's luminous efficiency higher than 91.8%, Material Borosilicate glass 3.3 is simply a different type of glass that is resistant to temperature swings and scratching, temperature-resist grade is – 50°C to +520°C, It is applied to miner's lamp, street lamp, Flood light, Grow lightPN : RX650-020-19
Material High-borosilicate 3.3

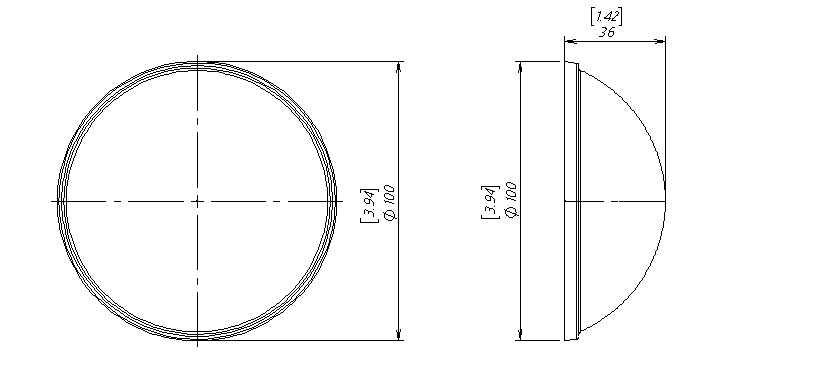

Geometry Ø100 x 36 mm
VLT 91.8%
Operating Temperature -50°C ~ + 120 °C
Weight 219g
Beam Angle 90°
Suitable CREE, CITIZE, BRIDGELUE,NICHIA,OSRAM,LG,PHILIPS ,LUMINUS
Application Miner Lamp, Street Lamp , Flood light , COB Grow lightsDrawing PN : RX650-019-19
Material SUS304

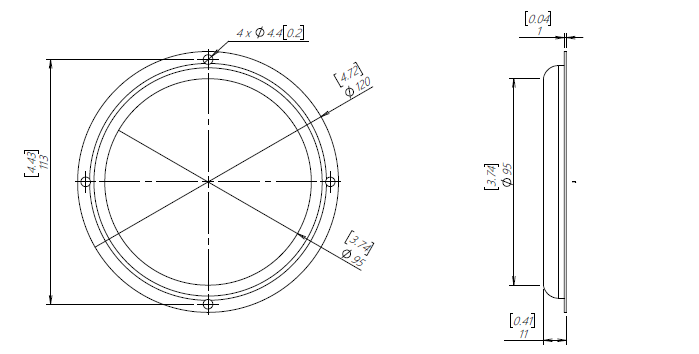

Geometry Ø120 x 10.5 mm
Weight 46g
Suitable Glass Lens Ø100 x 34 mm RX650-020-19Drawing Optic Parameters

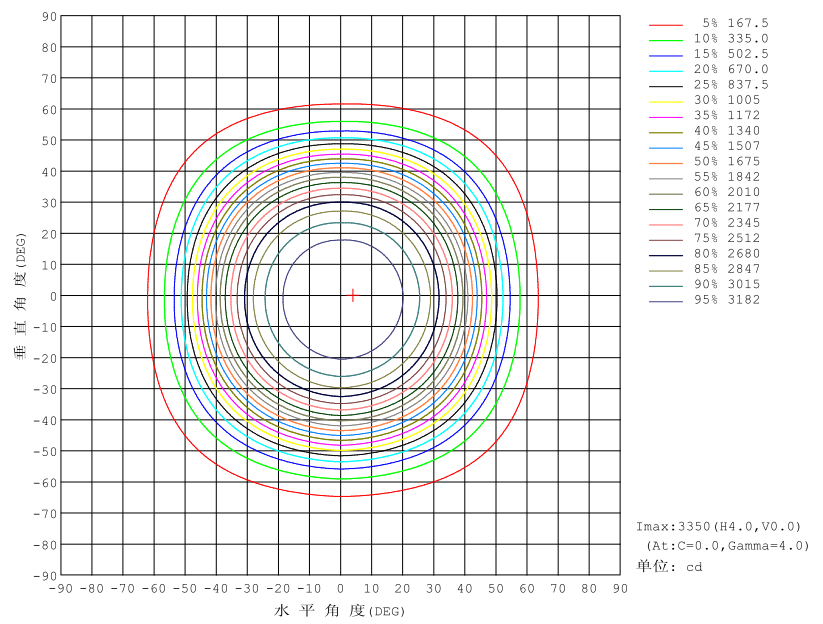

ISO candela Curve

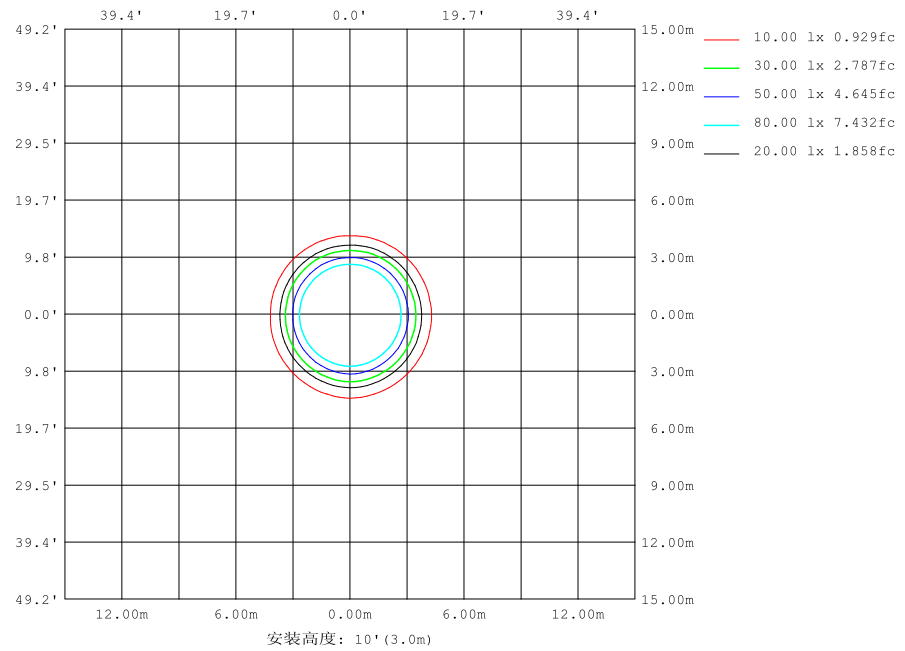

ISO Lux Curve

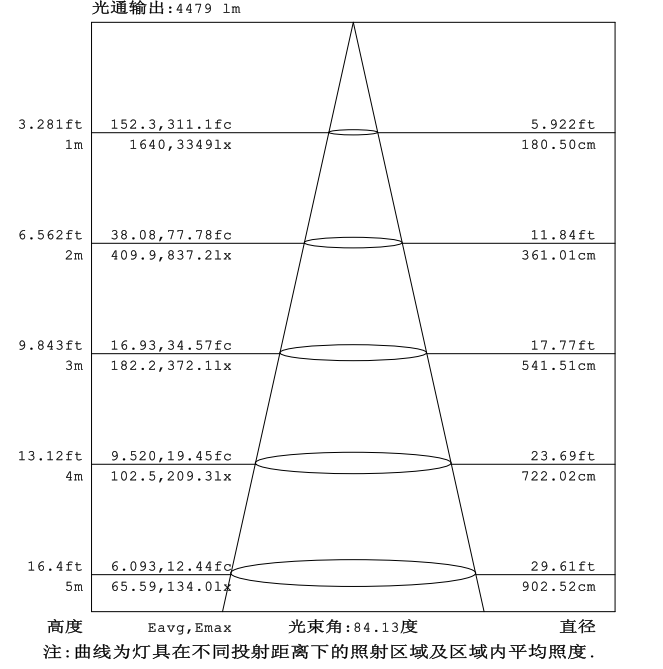

illumination Service Download Drawing format (such as PDF, CAD) Thank you for choosing to incorporate the LED Light series, If you need assistance, Renxin Thermal will support you with:
Engineering assistance for product design and manufacturability,
Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support :info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
